Calibration Curves for Multiple Models

An example of creating a calibration curve using rtichoke and scikit-learn.

The following example is inspired by the scikit-learn documentation displaying a calibration curve.

Load data and fit models

from sklearn.datasets import make_classification
from sklearn.model_selection import train_test_split
from sklearn.linear_model import LogisticRegression
from sklearn.naive_bayes import GaussianNB
from sklearn.calibration import CalibratedClassifierCV
import numpy as np
from sklearn.svm import LinearSVC

X, y = make_classification(
    n_samples=10_000, n_features=20, n_informative=2, n_redundant=10, random_state=42
)

X_train, X_test, y_train, y_test = train_test_split(
    X, y, test_size=0.99, random_state=42
)

lr = LogisticRegression(C=1.0)
gnb = GaussianNB()
gnb_isotonic = CalibratedClassifierCV(gnb, cv=2, method="isotonic")
gnb_sigmoid = CalibratedClassifierCV(gnb, cv=2, method="sigmoid")

lr.fit(X_train, y_train)
gnb.fit(X_train, y_train)
gnb_isotonic.fit(X_train, y_train)
gnb_sigmoid.fit(X_train, y_train)

y_proba_lr = lr.predict_proba(X_test)[:, 1]
y_proba_gnb = gnb.predict_proba(X_test)[:, 1]
y_proba_gnb_isotonic = gnb_isotonic.predict_proba(X_test)[:, 1]
y_proba_gnb_sigmoid = gnb_sigmoid.predict_proba(X_test)[:, 1]

class NaivelyCalibratedLinearSVC(LinearSVC):

    def fit(self, X, y):
        super().fit(X, y)
        df = self.decision_function(X)
        self.df_min_ = df.min()
        self.df_max_ = df.max()

    def predict_proba(self, X):
        df = self.decision_function(X)
        calibrated_df = (df - self.df_min_) / (self.df_max_ - self.df_min_)
        proba_pos_class = np.clip(calibrated_df, 0, 1)
        proba_neg_class = 1 - proba_pos_class
        proba = np.c_[proba_neg_class, proba_pos_class]
        return proba

svc = NaivelyCalibratedLinearSVC(max_iter=10_000)
svc_isotonic = CalibratedClassifierCV(svc, cv=2, method="isotonic")
svc_sigmoid = CalibratedClassifierCV(svc, cv=2, method="sigmoid")

svc.fit(X_train, y_train)
svc_isotonic.fit(X_train, y_train)
svc_sigmoid.fit(X_train, y_train)

y_proba_svc = svc.predict_proba(X_test)[:, 1]
y_proba_svc_isotonic = svc_isotonic.predict_proba(X_test)[:, 1]
y_proba_svc_sigmoid = svc_sigmoid.predict_proba(X_test)[:, 1]

Gaussian Naive Bayes

rtichoke

from rtichoke import create_calibration_curve

create_calibration_curve(
    probs={
        "Logistic": y_proba_lr,
        "Naive Bayes": y_proba_gnb,
        "Naive Bayes + Isotonic": y_proba_gnb_isotonic,
        "Naive Bayes + Sigmoid": y_proba_gnb_sigmoid,
    },
    reals=y_test

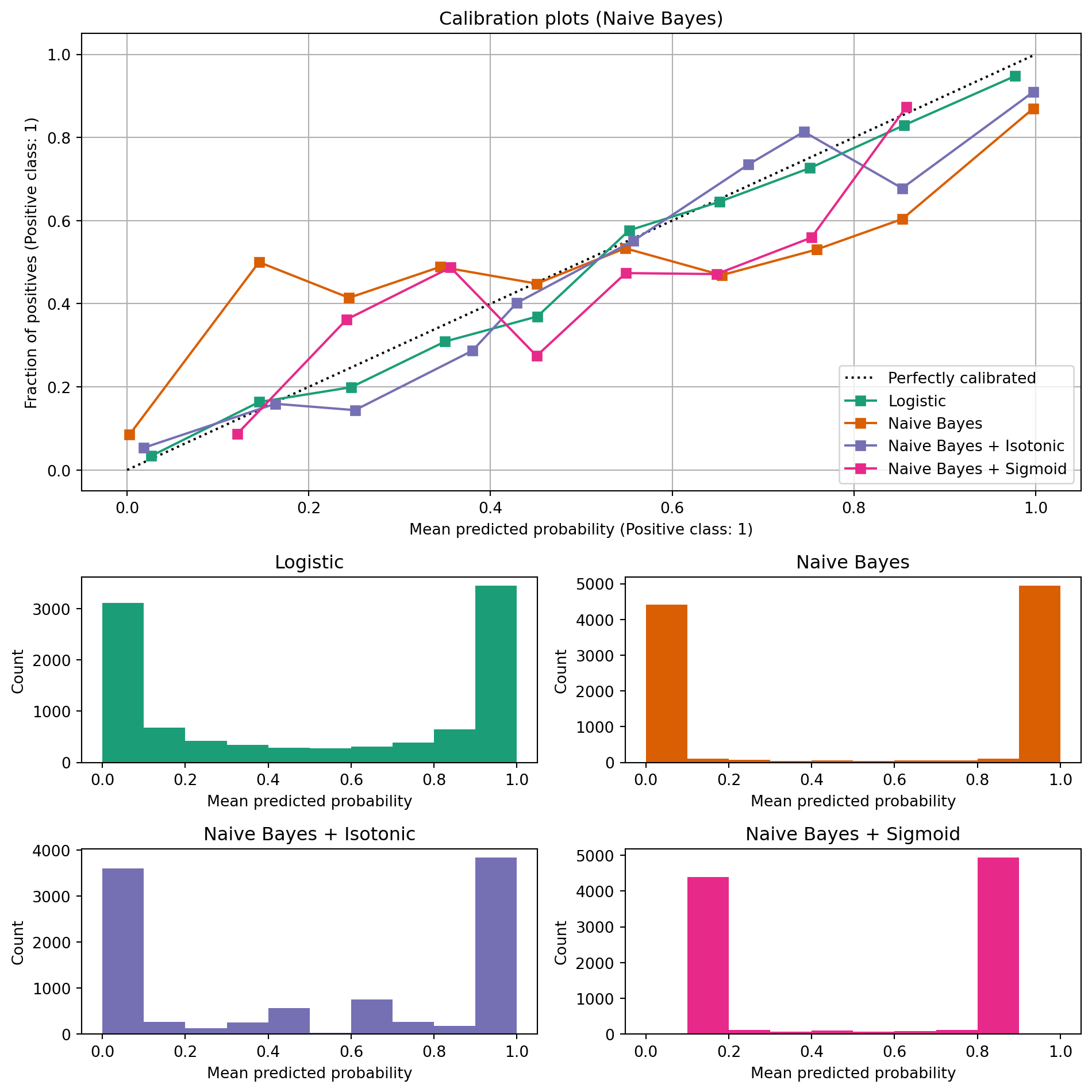

).show(config={"displayModeBar": False, "displaylogo": False})

scikit-learn

import matplotlib.pyplot as plt
from matplotlib.gridspec import GridSpec
from sklearn.calibration import CalibrationDisplay

clf_list = [
    (lr, "Logistic"),
    (gnb, "Naive Bayes"),
    (gnb_isotonic, "Naive Bayes + Isotonic"),
    (gnb_sigmoid, "Naive Bayes + Sigmoid"),
]

fig = plt.figure(figsize=(10, 10))
gs = GridSpec(4, 2)
colors = plt.get_cmap("Dark2")

ax_calibration_curve = fig.add_subplot(gs[:2, :2])
calibration_displays = {}
for i, (clf, name) in enumerate(clf_list):
    display = CalibrationDisplay.from_estimator(
        clf,
        X_test,
        y_test,
        n_bins=10,
        name=name,
        ax=ax_calibration_curve,
        color=colors(i),
    )
    calibration_displays[name] = display

ax_calibration_curve.grid()
ax_calibration_curve.set_title("Calibration plots (Naive Bayes)")

grid_positions = [(2, 0), (2, 1), (3, 0), (3, 1)]
for i, (_, name) in enumerate(clf_list):
    row, col = grid_positions[i]
    ax = fig.add_subplot(gs[row, col])

    ax.hist(
        calibration_displays[name].y_prob,
        range=(0, 1),
        bins=10,
        label=name,
        color=colors(i),
    )
    ax.set(title=name, xlabel="Mean predicted probability", ylabel="Count")

plt.tight_layout()
plt.show()

Linear SVC

rtichoke

create_calibration_curve(
    probs={
        "Logistic": y_proba_lr,
        "SVC": y_proba_svc,
        "SVC + Isotonic": y_proba_svc_isotonic,
        "SVC + Sigmoid": y_proba_svc_sigmoid,
    },
    reals=y_test

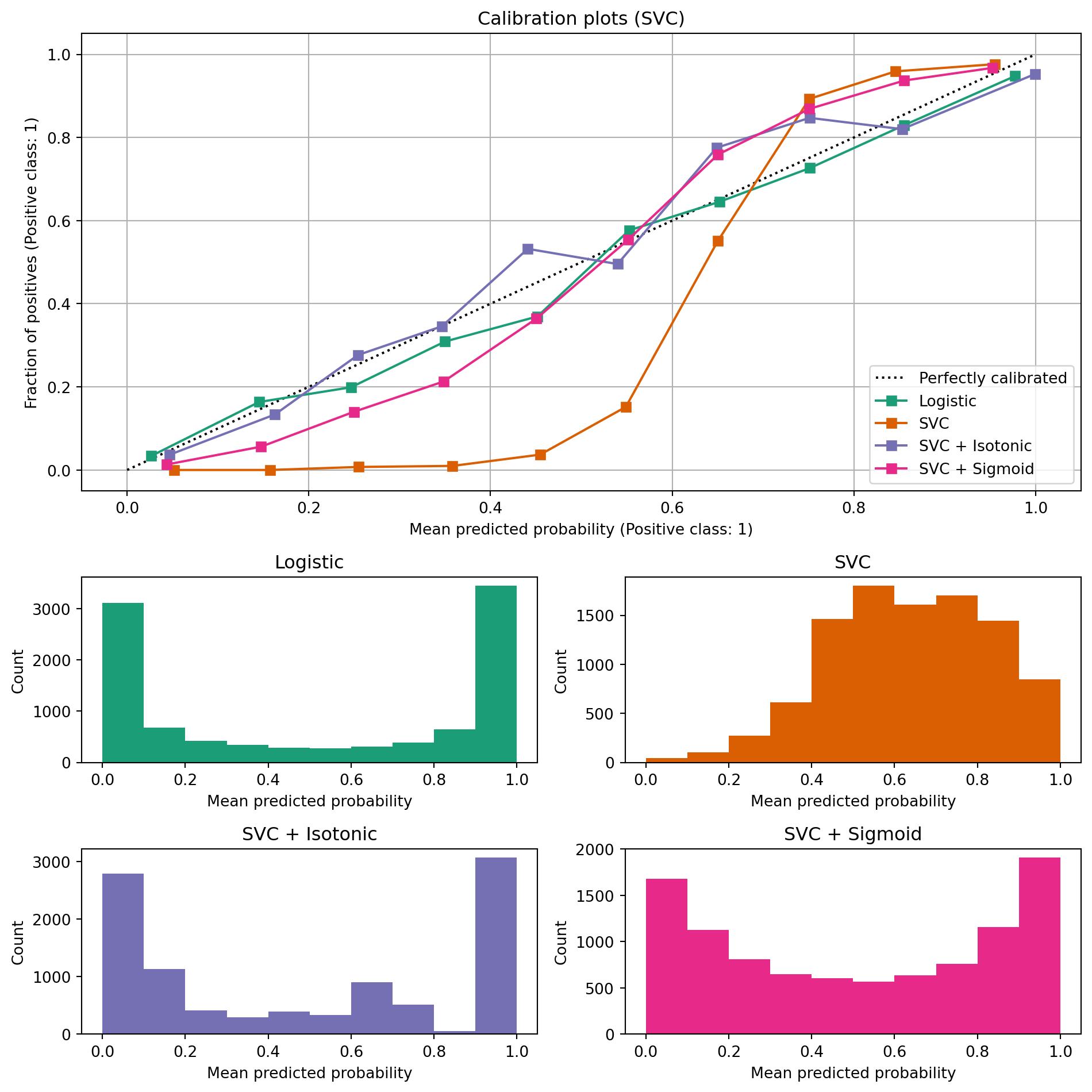

).show(config={"displayModeBar": False, "displaylogo": False})

scikit-learn

clf_list = [
    (lr, "Logistic"),
    (svc, "SVC"),
    (svc_isotonic, "SVC + Isotonic"),
    (svc_sigmoid, "SVC + Sigmoid"),
]

fig = plt.figure(figsize=(10, 10))
gs = GridSpec(4, 2)

ax_calibration_curve = fig.add_subplot(gs[:2, :2])
calibration_displays = {}
for i, (clf, name) in enumerate(clf_list):
    display = CalibrationDisplay.from_estimator(
        clf,
        X_test,
        y_test,
        n_bins=10,
        name=name,
        ax=ax_calibration_curve,
        color=colors(i),
    )
    calibration_displays[name] = display

ax_calibration_curve.grid()
ax_calibration_curve.set_title("Calibration plots (SVC)")

# Add histogram
grid_positions = [(2, 0), (2, 1), (3, 0), (3, 1)]
for i, (_, name) in enumerate(clf_list):
    row, col = grid_positions[i]
    ax = fig.add_subplot(gs[row, col])

    ax.hist(
        calibration_displays[name].y_prob,
        range=(0, 1),
        bins=10,
        label=name,
        color=colors(i),
    )
    ax.set(title=name, xlabel="Mean predicted probability", ylabel="Count")

plt.tight_layout()
plt.show()
